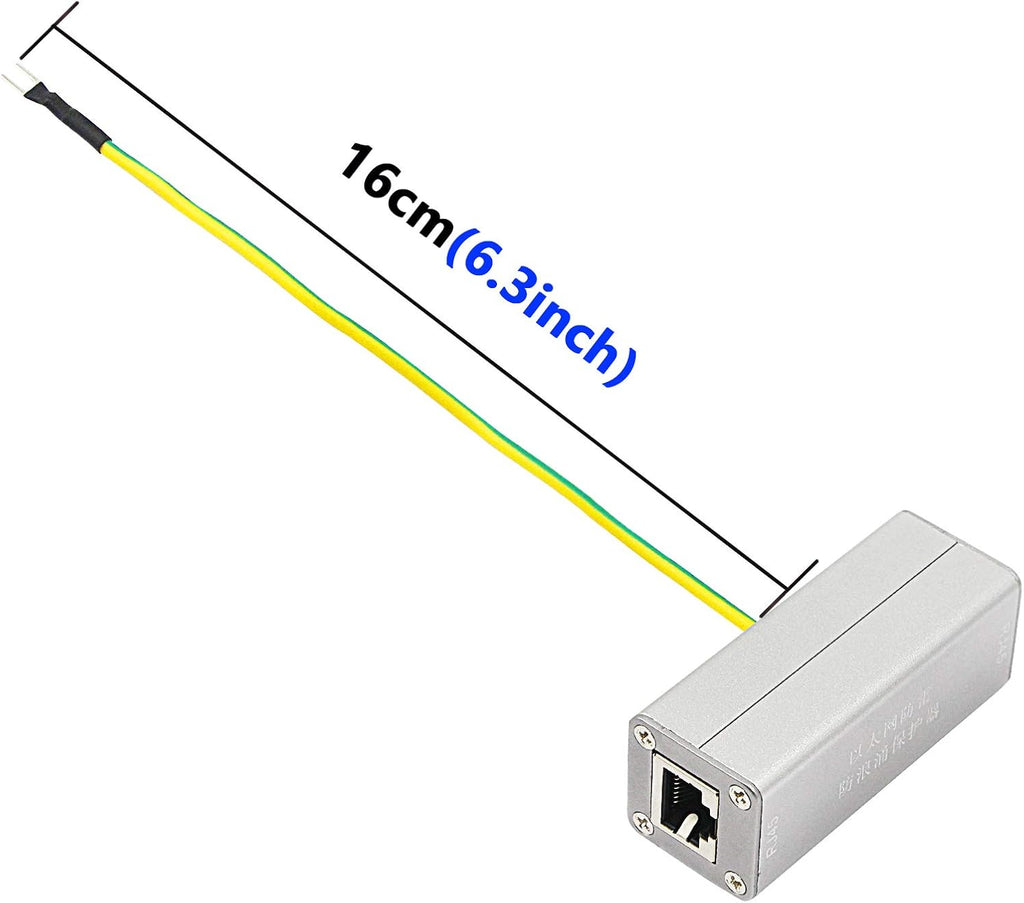

A silver metal electronic module with a yellow and green wire extending from one end, shown on a white background with a black measurement line and blue text indicating a length of 16cm (6.3 inches).

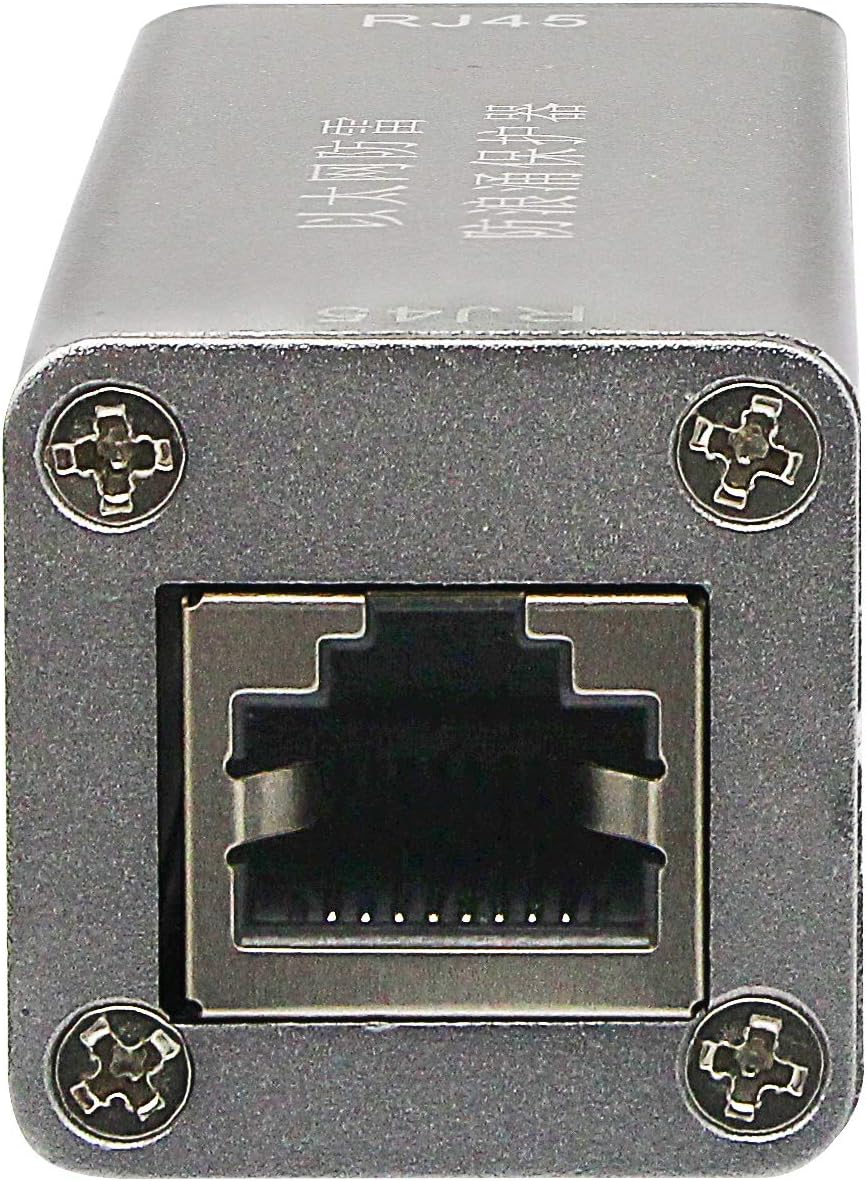

A close-up of a dark gray RJ45 Ethernet module with four corner screws and Chinese text printed on the top surface.

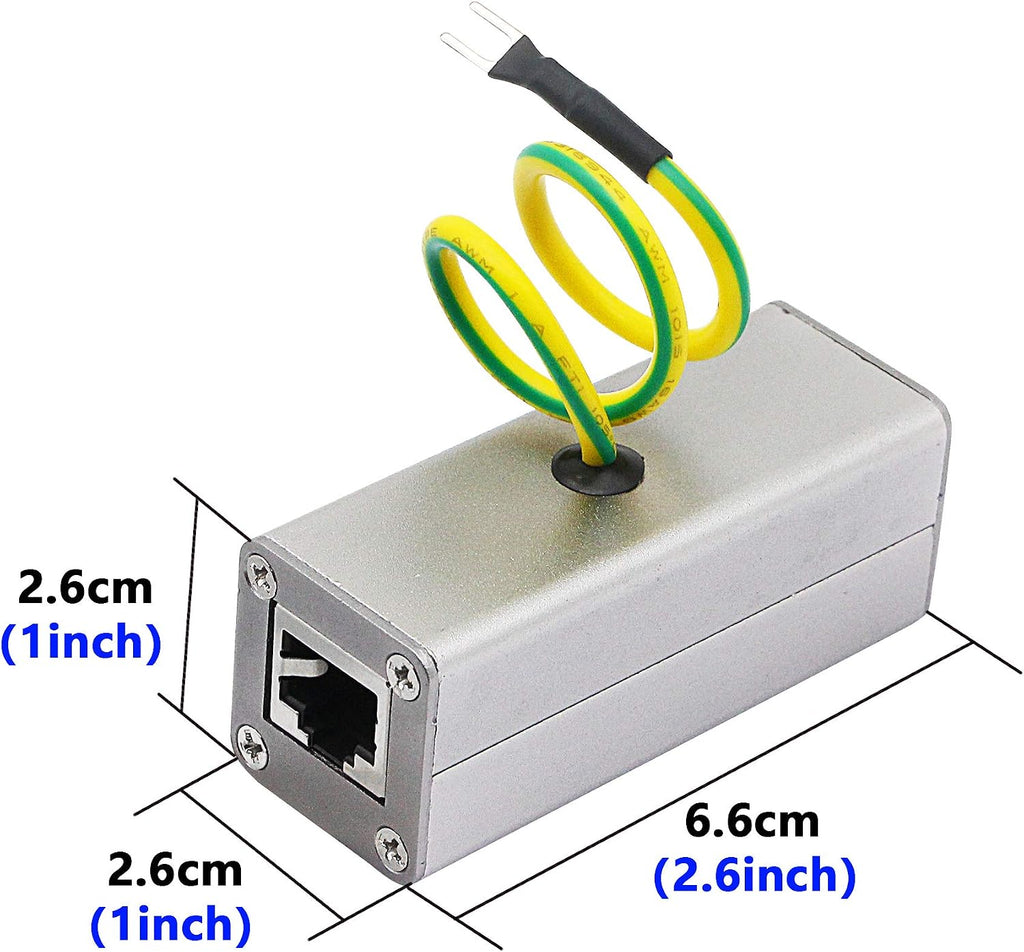

A silver metal electronic module with an RJ45 Ethernet port, featuring a coiled yellow and green wire on top, shown with dimension lines and labels indicating measurements of 2.6cm, 6.

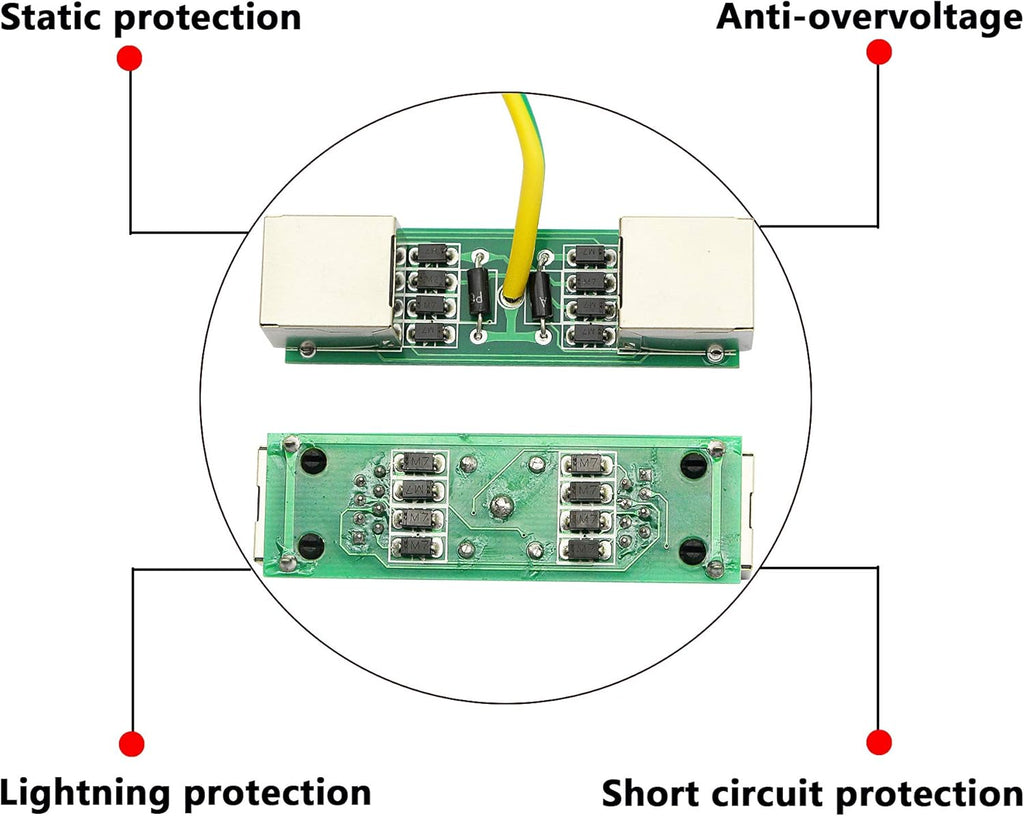

Technical diagram showing a green electronic protection circuit board from front and back, with callouts reading Static protection, Anti-overvoltage, Lightning protection, and Short circuit protection.

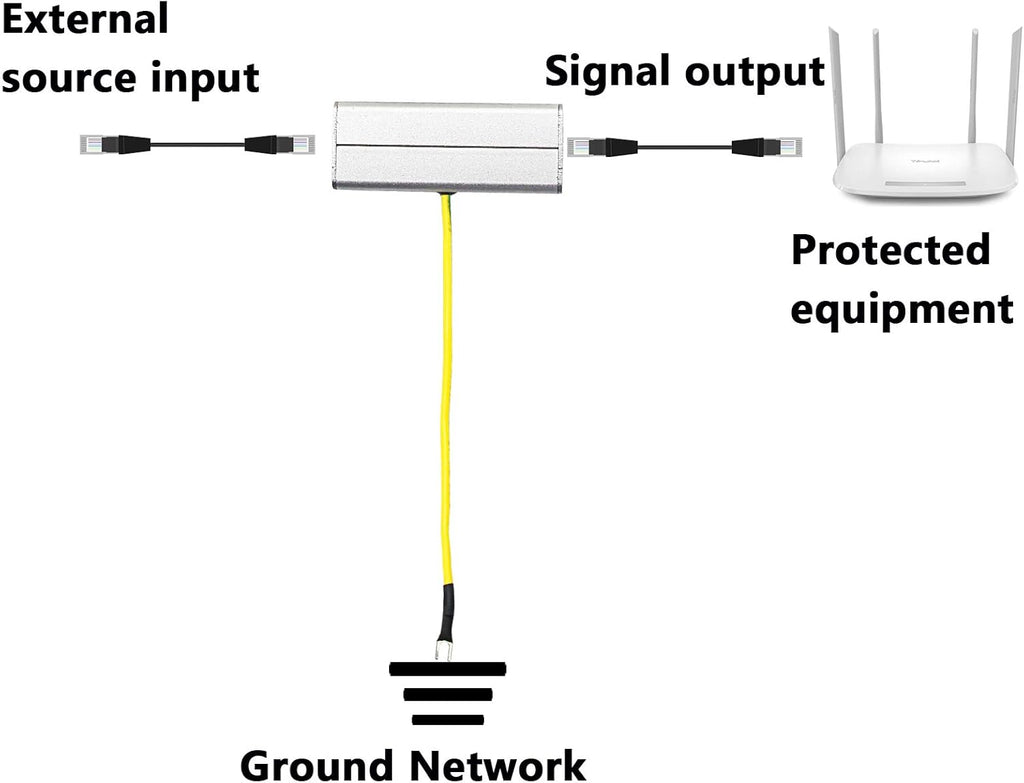

An electronic signal isolator or splitter diagram on a white background, showing a silver rectangular device with a yellow ground cable, labeled connections for external source input, signal output, ground network, and protected equipment.

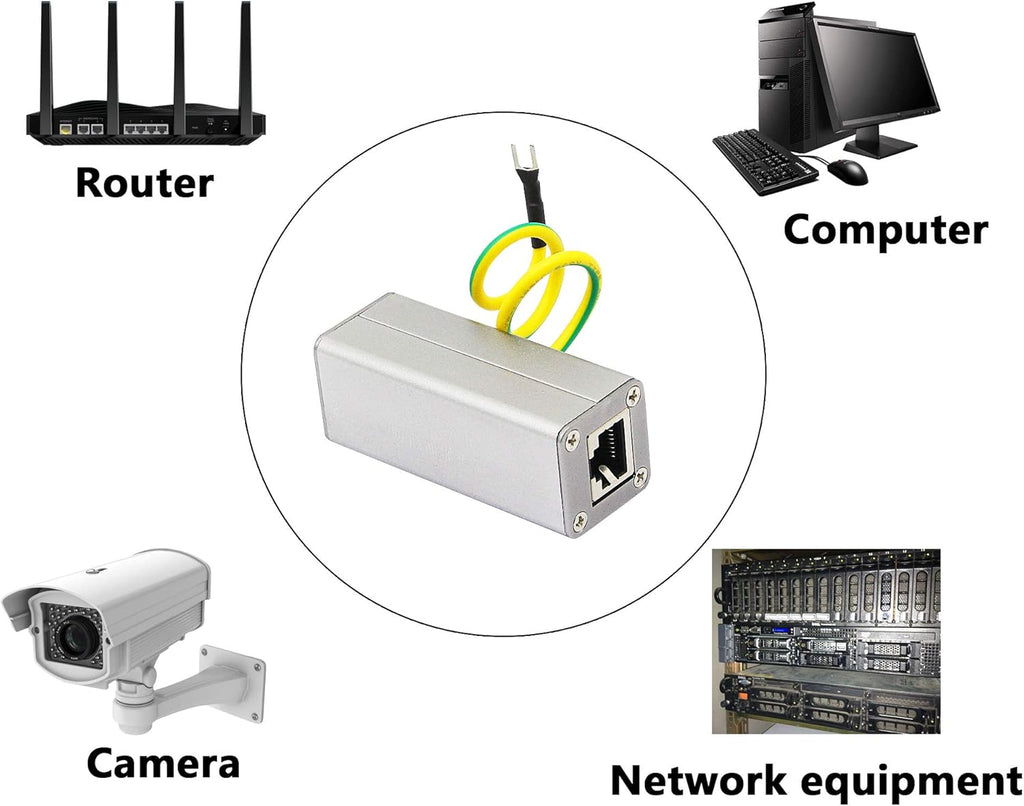

A silver Ethernet switch or network hub with yellow and green cable loops, shown in a circular diagram surrounded by labeled icons for Router, Computer, Camera, and Network equipment on a white background.

RJ45 Ethernet network surge protector for outdoor wireless access point to protect indoor equipment

WISPzone
Price:
$18.95

Description

RJ45 Ethernet network surge protector for outdoor wireless access point to protect indoor equipment.


Product Description:

  • An outdoor wireless access point is susceptible to damage from a nearby lightening strike that will send a high voltage along the Ethernet cable.
  • The Network Surge Protector Suppressor protects an Ethernet data connection between an outdoor wireless access point and a router installed in a building.
  • The Network Surge Protector connects to the ground, to prevent lightning surging, and prevent damage indoor devices.
  • The Network Surge Protector provides high-speed protection, with a low capacitance design, fast response, low output residual voltage and superior transmission performance.
  • There is no "In" or "Out" cable side of this device, both sides are identical RJ-45 Interface.Regardless of whether your protected device is behind any particular side, it can work properly by connecting the correct cables.

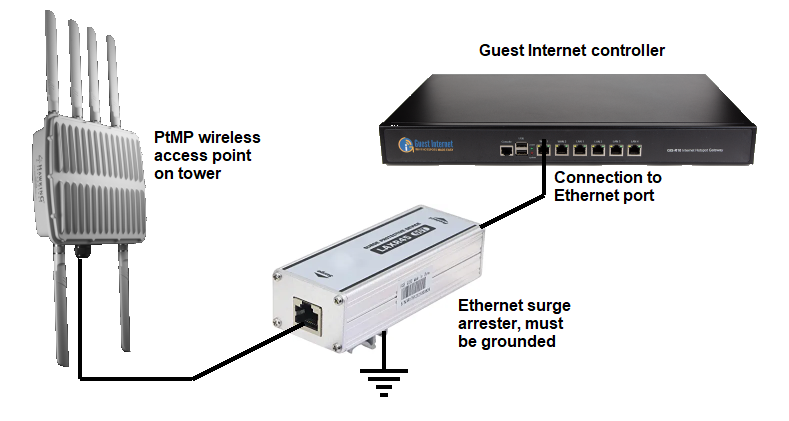

  • Network Surge Protector is connected in series in front of the input of the protected device, as shown in the diagram connected to the Guest Internet controller.



Box Weight: 1lbs

Box Dimensions: Length - 25cm / Width - 11cm / Height - 8cm

Color: Gray

Manufacturer: China

Warranty: 1 year
