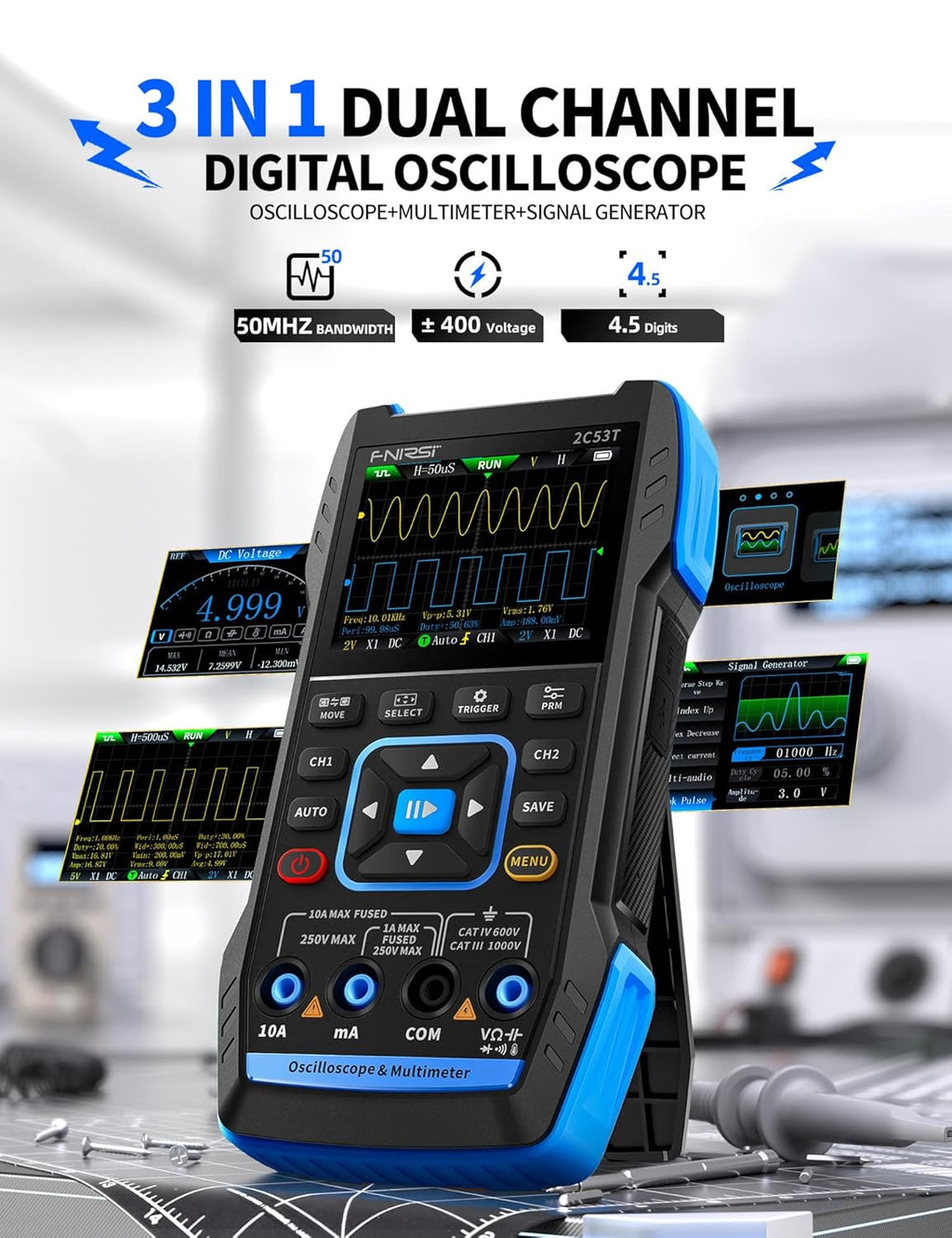

FNIRSI 2C53T 3-in-1 50MHz 2CH Oscilloscope Multimeter DDS Signal Generator

WISPzone
Price:
$149.98

Description

250MSa/s Sampling, 19999 Counts Multimeter, Handheld Portable Oscilloscope, Auto Measurement for Automotive Electronic Repair

* We ship products worldwide via DHL and UPS, we also ship to a courier of your choice. Select your preferred shipper at the checkout. If you are purchasing outside the USA be aware that the shipper will contact you to request payment for the import duties when the product arrives at your country

Product Specifications

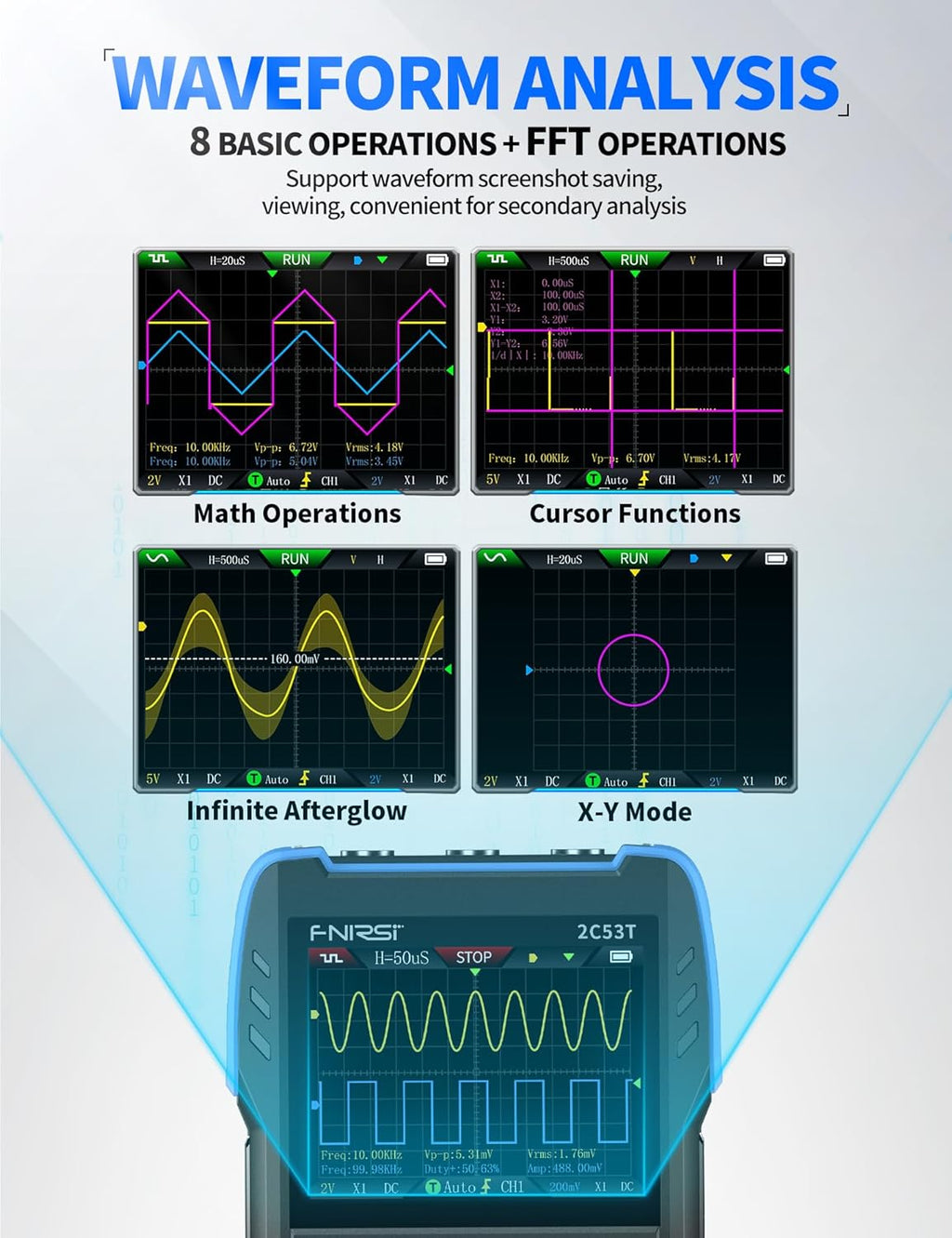

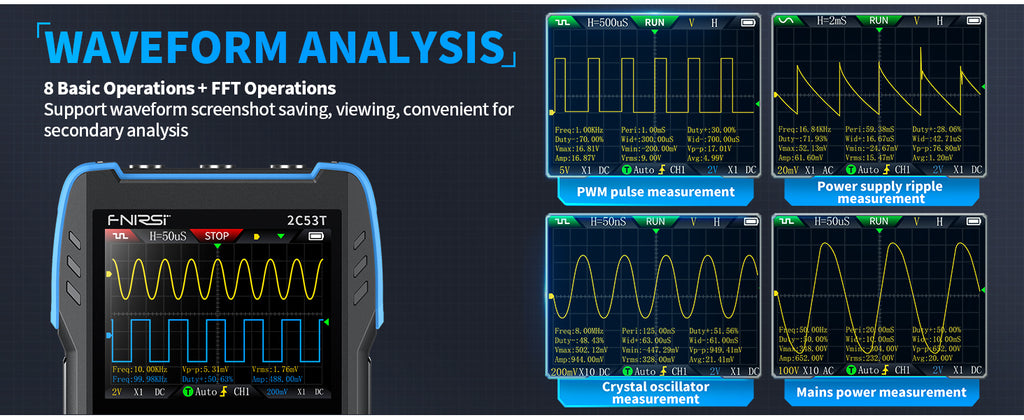

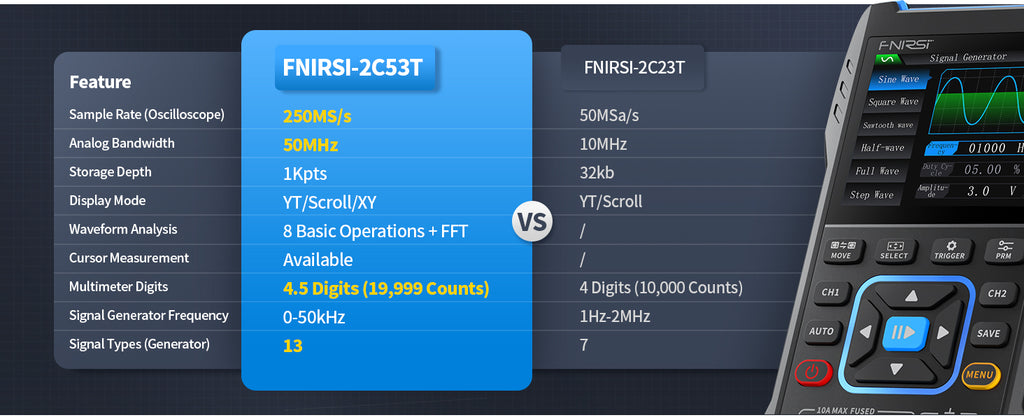

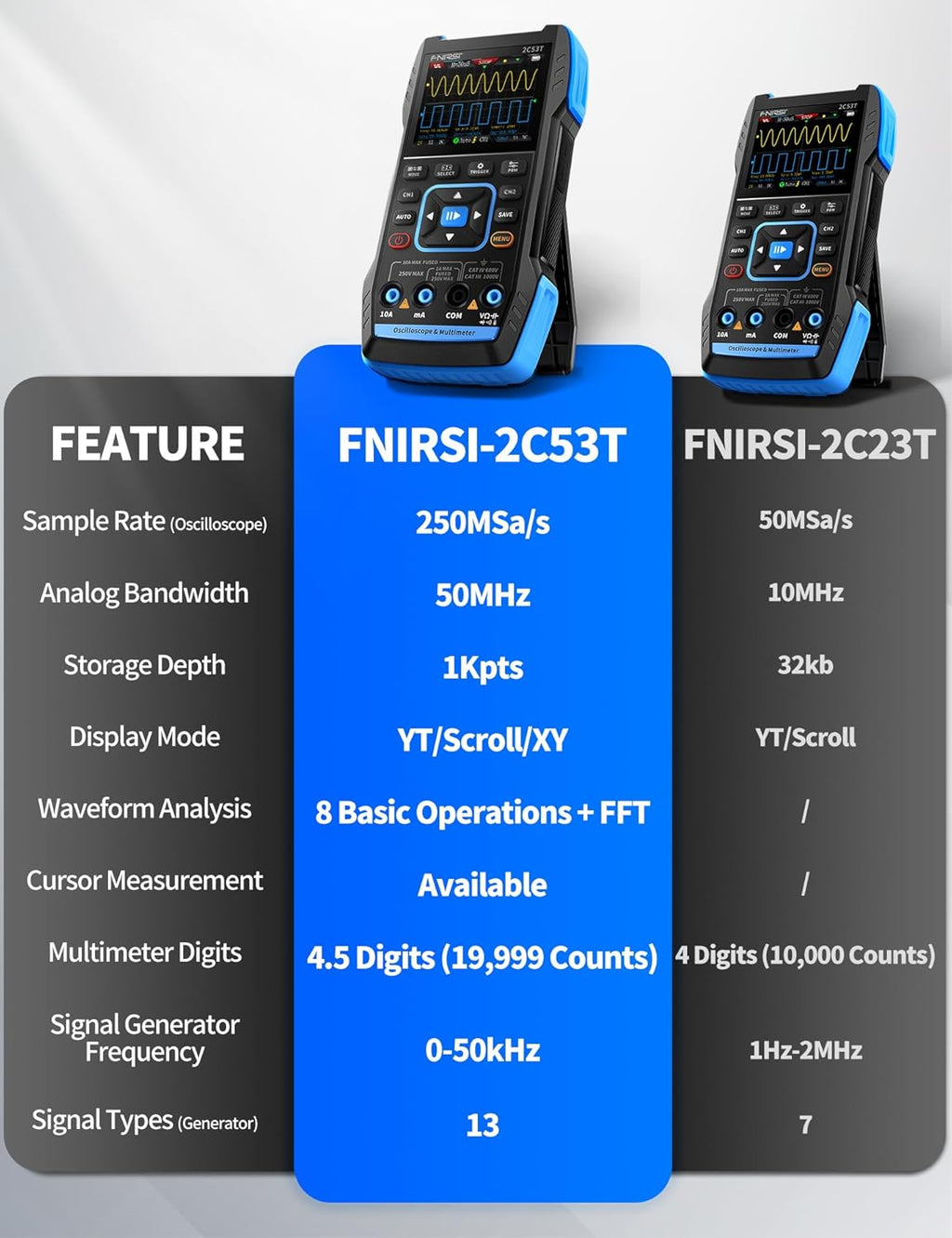

  • Newly Version: The 2C53T is an upgraded version of the 2C23T, which improves the measuring range and adds math operation，cursor measurement，persistence mode，XY mode features.

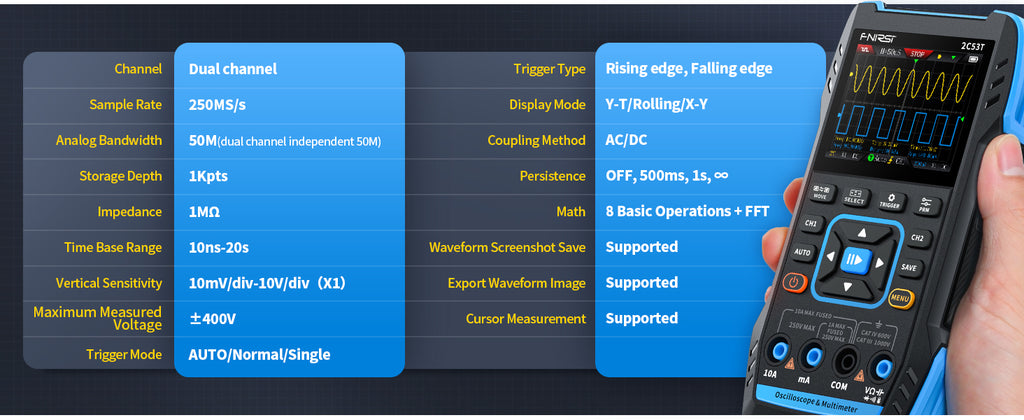

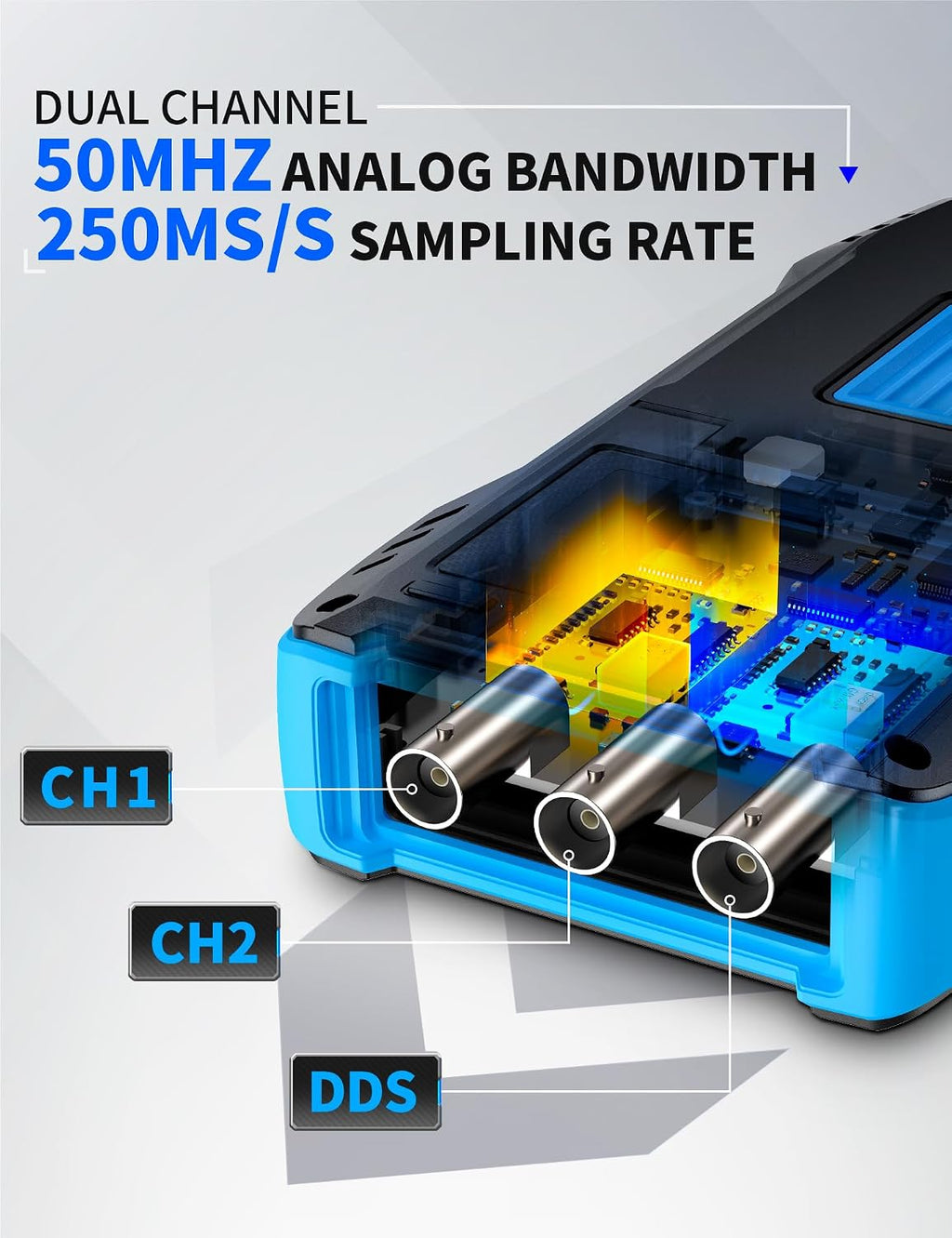

  • 2 Channel Oscilloscope: 50 MHz bandwidth, 250 MSa/s sampling rate, 1 Kpts record depth, automatic measurement function, max voltage 400 V, vertical sensitivity 10mV/div-10V/div , support waveform image storage and export.

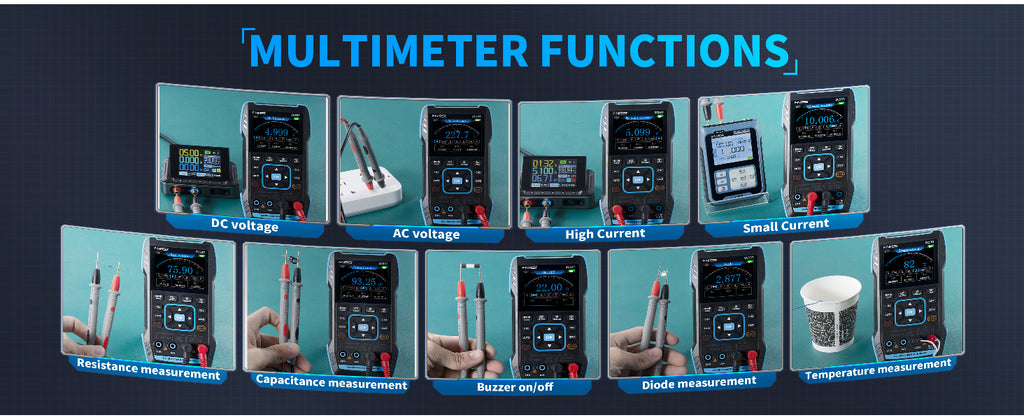

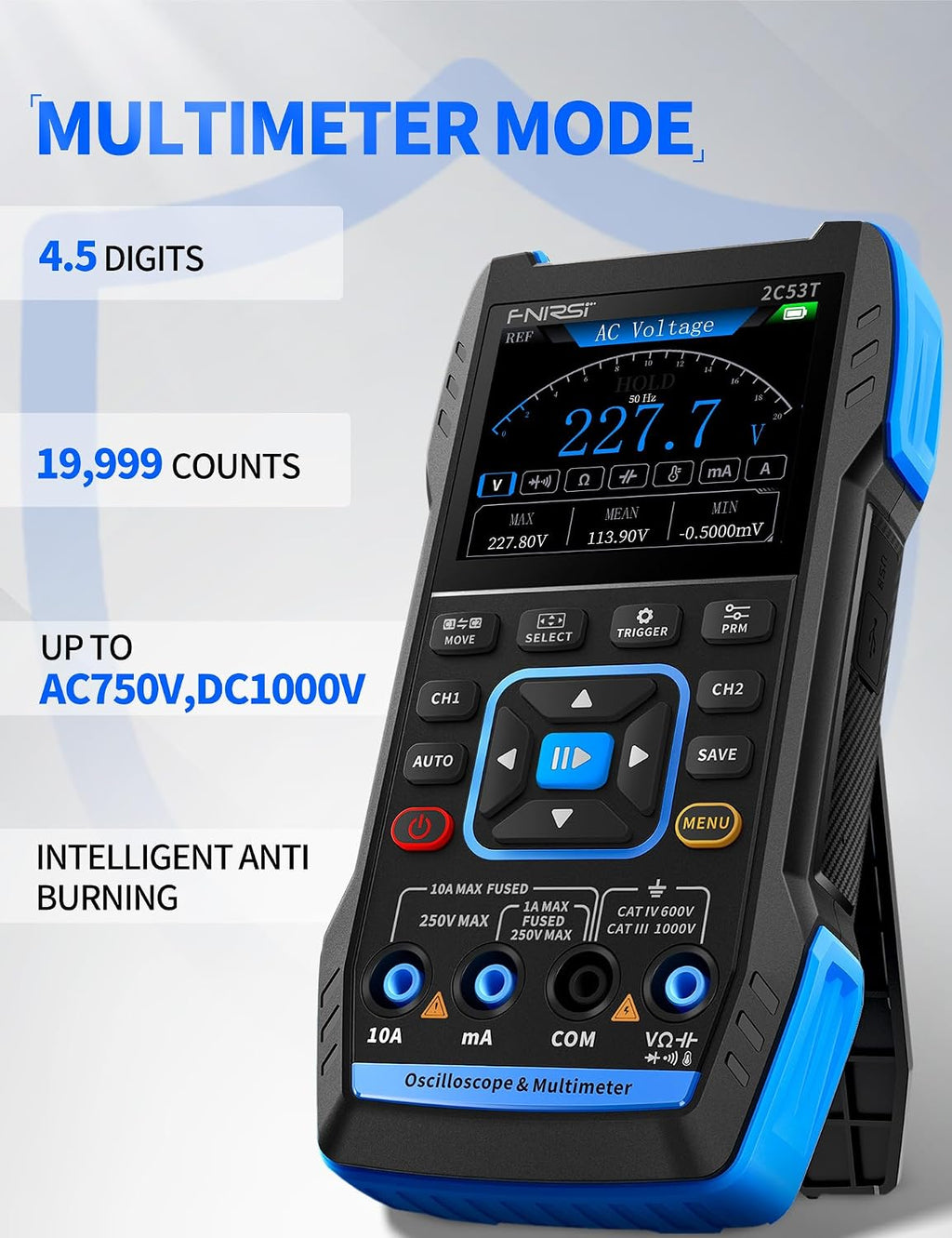

  • 4.5-Digit 19999 Counts Multimeter: AC Voltage: 0-750 V, DC Voltage: 0-999.9 V, DC/AC Current: 0-9.999 A, Resistance: 0-19.99 MΩ, Capacitance: 0-99.99 mF, Continuity Measurement. Multi-function meter for professionals, schools and hobbyists.

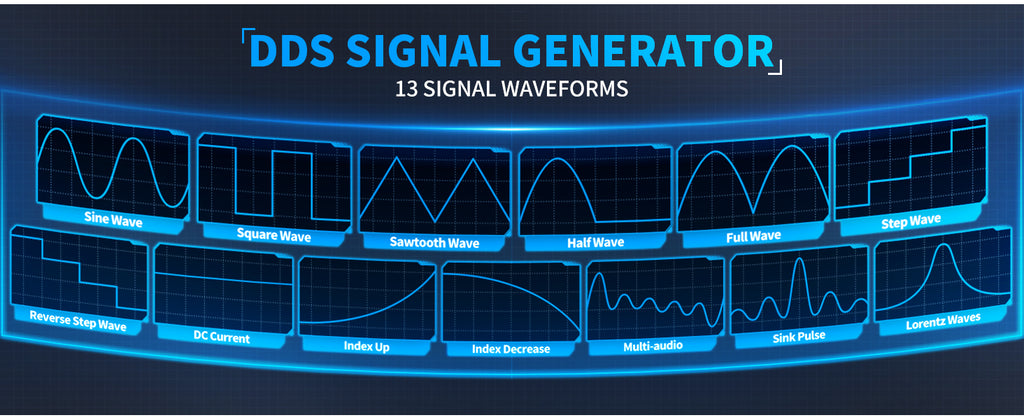

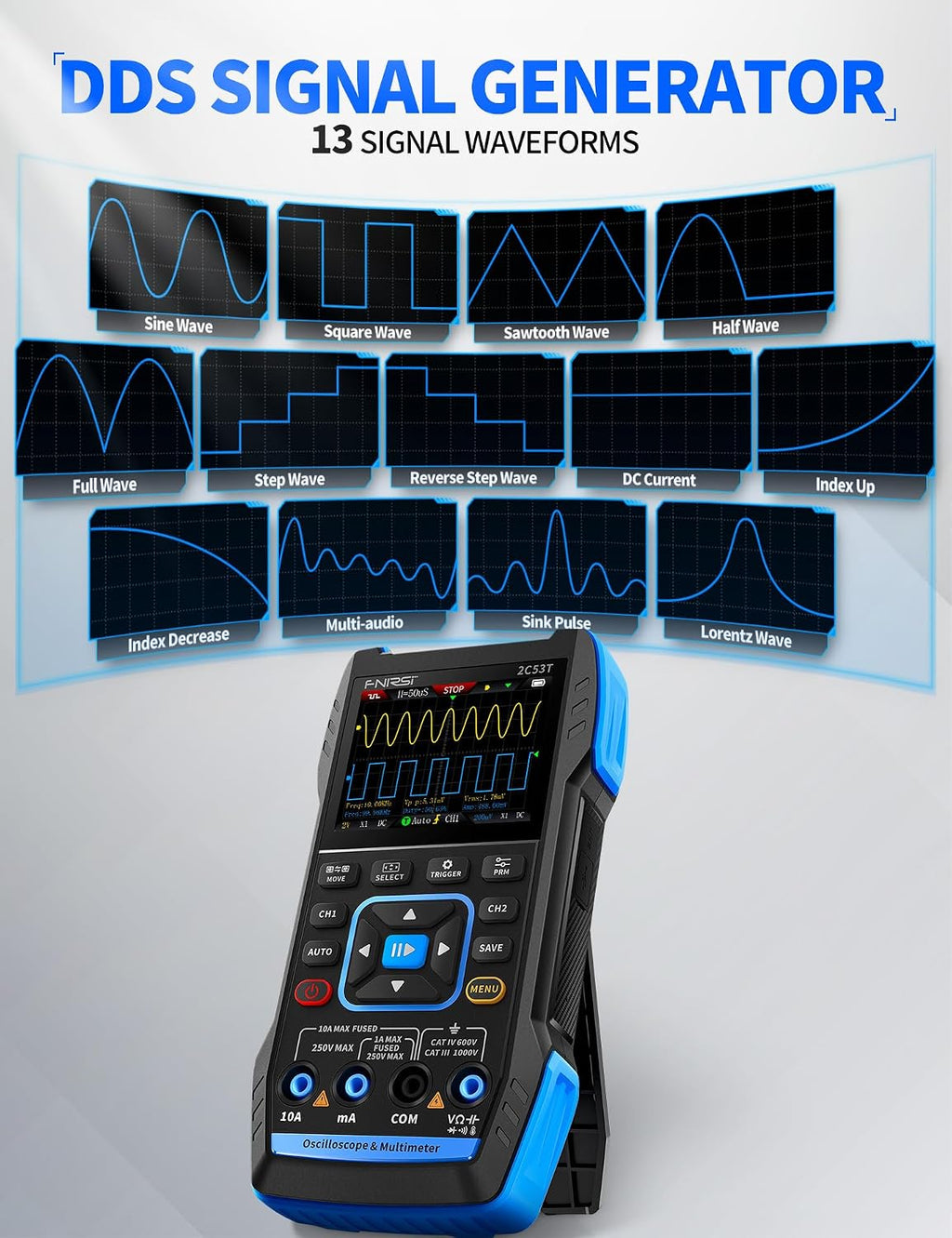

  • Signal Generator: The maximum waveform output frequency can reach 50 kHz and a step of 1 Hz, and can output 13 waveforms.
  • Save function: One-click save, screening function. You can upload the saved image by connecting to PC via Type-C. You can easily compare the waveforms by displaying the reference waveform and the measured waveform on the same screen.

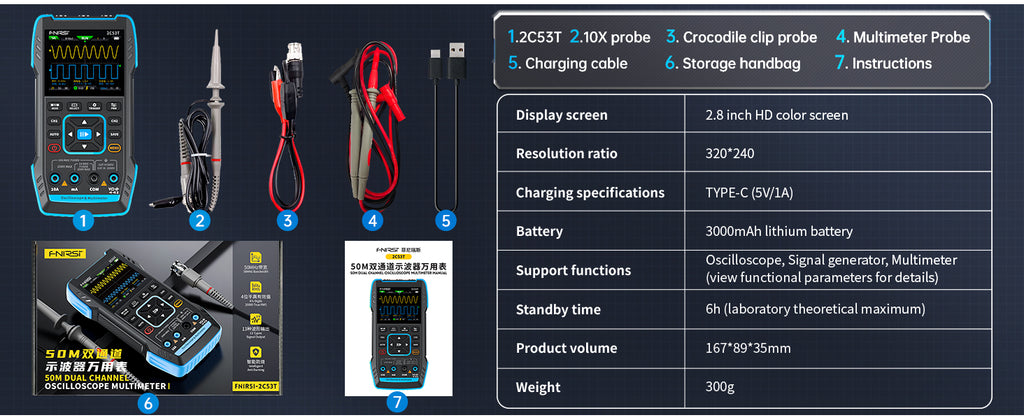

  • Excellent Design: The Oscilloscope adopts FPGA+MCU+ADC hardware architecture, built-in high-voltage protection module, adopts 2.8 inch LCD display, built-in 3000 mAh battery, standby time up to 6 H, Type-C interface supports 5 V/1 A charging.
  • Language Switch: After powering on the device, press the left or right directional buttons to enter System Settings, then select the Language option to switch languages.
  • Grid Clarity Adjustment: After entering system settings, select Sound and Light. Raise screen brightness to make grid lines sharp and clear.

Features and Specifications

  • Power Source: Battery Powered
  • Upper Temperature Rating: 1300 Kelvin
  • Measurement Type: Multimeter
  • Compatible Devices: Oscilloscopes, Multimeters, Signal Generators, Computers, Electronic Testing and Measurement Devices

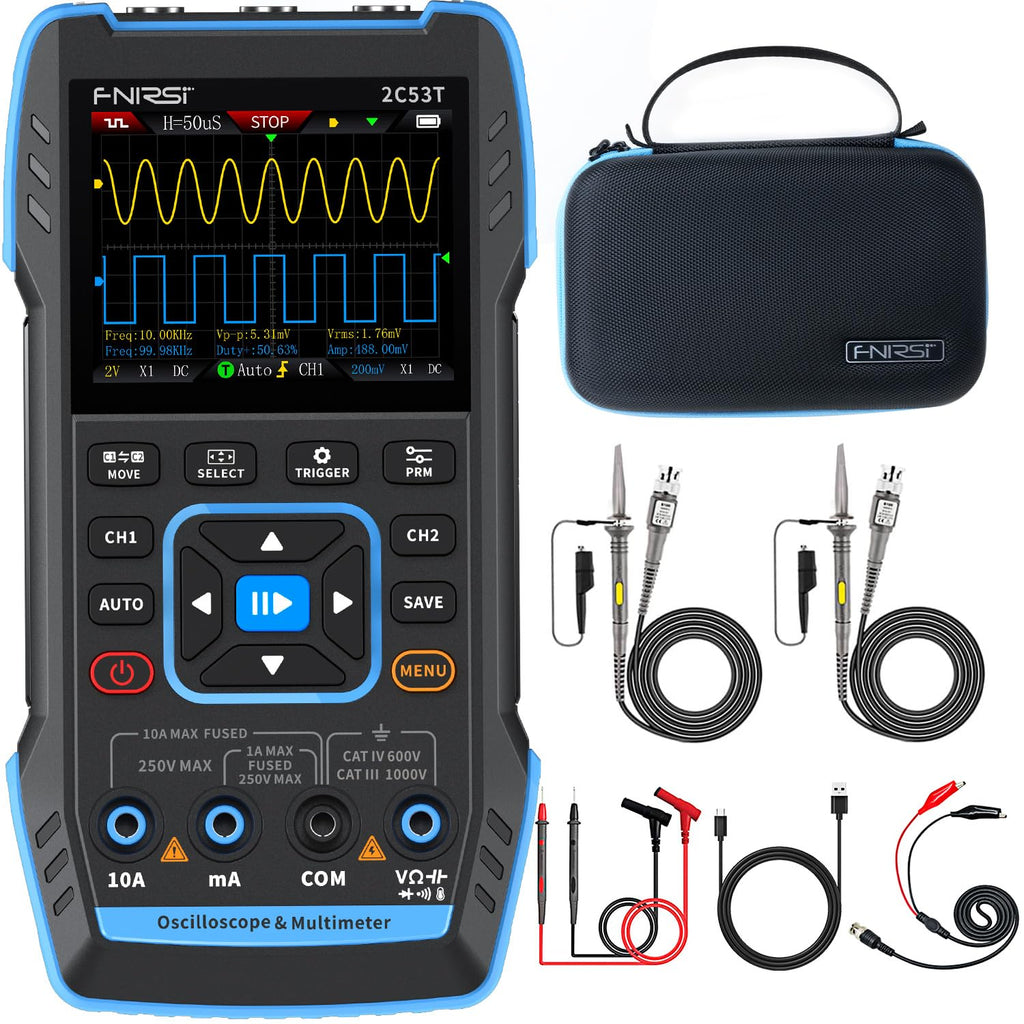

  • Included Components: 10X Probe, Crocodile Clip Probe, Multimeter Probe, Type-C Cable, Storage Case



Box Weight:  2lbs

Box Dimensions: Length - 18cm  / Width - 16cm  / Height - 17cm

Color: Black

Manufacturer: FNIRSI
